PULL-OUT SHELF BRACKET KITS

Give your customers the DRAWER QUALITY they deserve at a price you can afford!

Pull-Out Shelf Bracket Kits

Our new Drawer Outlet Kits and Pull Out Shelf Kits are the best way to upgrade a kitchen in less than 15 minutes. All you have to do is attach the drawers to the mounting brackets and secure the kit to the cabinet bottom. Its that easy!

Pull-Out Shelf Bracket Specifications

  • Drawer glides are rated 100lb capacity (including drawer box)
  • Standard two drawer kit accommodates taller items
  • Includes 1 pair of Rollout Brackets with 22″ glides already attached

PULL-OUT KITS

Our Pull-Out Kits come with a pair of brackets that include two pair of full extension ball bearing glides. Drawers for the kit can be ordered separately.

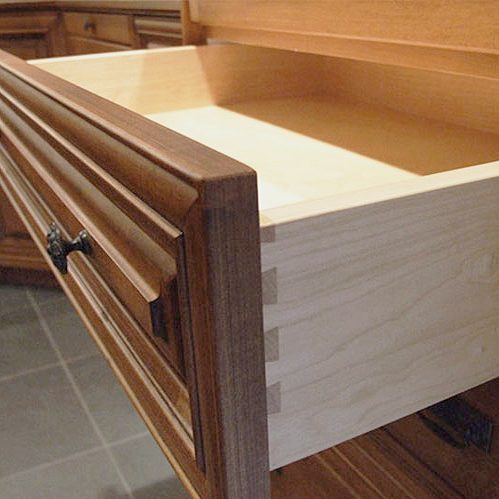

DOVETAIL DRAWERS

The dovetail joint is a common joint technique in drawer construction, consisting of a series of cuts that interlock to form a flat edge at the corners and sides and does not require glue or additional hardware to stay fastened.

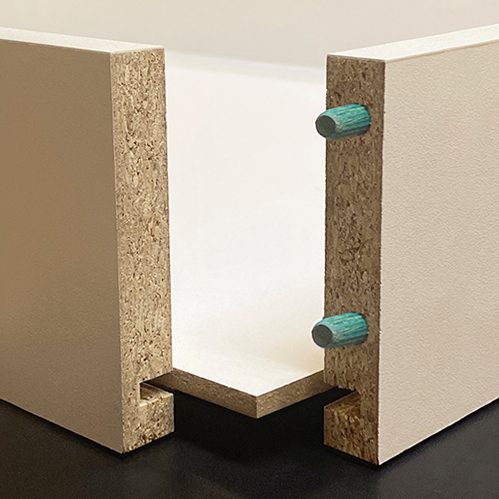

DOWEL DRAWERS

The dowel joint is a common joint technique in drawer construction, used to reinforce a butt joint, where two pieces of wood fit together at the sides using wooden pins (dowels) that fit into corresponding pre-cut holes.

HOW-TO VIDEOS

Learn How To Navigate Home, Make a Payment, Duplicate an order, Create a Bid and Place an order, Creat an account and attach spec sheet. Click the link below to visit our How-To Videos section of the website.

Docking Drawer Ready Drawer Box

Drawer Outlet Kit Markets

It’s time to clear clutter with beautifully constructed Drawer Connection drawer boxes and Docking Drawer in-drawer power outlets. Whether it’s in your home, closet, office, or locker room reduce clutter by getting all your cords, chargers, personal technology and hair dryers out of the way. Order your Docking Drawer Ready Drawer Box and Docking Drawer electrical outlet with the easy to utilize online ordering tool by clicking the “Order Now” button above.

New and Improved! All outlets now come with an adjustable rear mounting bracket for easier installation! Simple to specify. Reduces clutter. Safe.

  • RESIDENTIAL
  • GARAGE STORAGE
  • FURNITURE
  • LOCKER ROOMS
  • ASSISTED LIVING
  • YACHTS
  • CABINET MAKERS
  • ARCHITECTS
  • MEDICAL LABS
  • KITCHEN & BATH DESIGNERS
  • ELECTRICIANS
  • COMMERCIAL BUILDINGS
  • CLOSET
  • ANYTHING WITH A DRAWER

Solutions For Every Application

DOCKING DRAWER 21 + 24 SLIM

Reduce Clutter

Take control and clear clutter. Drawer electrical outlets are the perfect solution for today’s connected homes, bathrooms, kitchens, drop zones, bars, locker rooms, offices and more. Use Docking Drawers where ever you seek to clear clutter and charge or power your devices.

  • Phones
  • Tablets
  • Laptops
  • USB Flashlights
  • USB Speakers
  • Combination Outlet

DOCKING DRAWER SLIM USB

Safe

To increase safety and minimize risk, Drawer outlet kits include integrated interlocking safety features. Docking Drawer 21 + 24 SLIM outlets feature a UL Listed circuit breaker that prevents high power devices from being used to ensure safe operation. Style Drawer and Mighty Drawer feature a UL Listed thermostat which cuts power to the outlet in the event that the surrounding temperature exceeds 120˚F to minimize risk with devices that are left on when the drawer is closed.

  • Phones
  • Tablets
  • USB Flashlights
  • USB Speakers
  • USB Ports
  • No AC Outlets

DOCKING DRAWER SLIM USB

Reliable

Utilizing JTech Solutions engineering expertise, we built Docking Drawer in-drawer electrical outlets with high quality materials. Then we cycle test the assembly over 500,000 times representing opening and closing the drawer every 15 minutes for over 30 years to ensure a lifetime of trouble free operation.

  • Hair Dryers
  • Curling Irons
  • Flat Irons
  • Mixers
  • Items Requiring Full Power
  • 2 GFCI AC Outlets

  • Purpose

  • Outlet Types
  • Cabinet DepthCabinet Depth
  • Outlet Name &
    Part Number
    Outlet Name &
    Part Number
  • CHARGING

  • Cabinet Depth24" 21" and 18"
  • Outlet Name &
    Part Number
    Blade 24190290-10124
    Blade 21180290-10021
    Blade 18170290-10018
  • 1Blade2419 USB0290-10124
    Blade2118 USB0290-10121
    Blade1817 USB0290-10118
  • CHARGING

  • Cabinet Depth24" 21" and 18"
  • Outlet Name &
    Part Number
    24 Slim0290-00031
    24 Slim0290-00030
    24 Slim0290-00047
  • 24 Slim USB0290-00046
    21 Slim USB0290-00045
    18 Slim USB0290-00048
  • POWERING

  • Cabinet Depth24" and 21"
  • Outlet Name &
    Part Number
    Style Drawer24
    Blade0209-00324
    Style Drawer21
    Blade0209-00321
  • POWERING

  • Cabinet Depth24" 21" and 18"
  • Outlet Name &
    Part Number
    24 Flush0209-00033
    21 Flush0209-00032
    18 Flush0209-00050
  • 24Surface 0290-00013
    21Surface 0290-00011
    18Surface 0290-00049

  • Cabinet Specifications

  • Minimum Drawer
    Box Width (OD)
    Minimum Drawer
    Box Width (OD)
  • Minimum Space
    Behind Drawer Box
    Minimum Space
    Behind Drawer Box
  • Minimum Drawer
    Box Width (OD)
    19" 18" and 17"
  • Minimum Space
    Behind Drawer Box
    2"
  • Minimum Drawer
    Box Width (OD)
    17.5" 16" and 14.5"
  • Minimum Space
    Behind Drawer Box
    3"
  • Minimum Drawer
    Box Width (OD)
    16" - 19.75"
    14.5" - 18.25"
  • Minimum Space
    Behind Drawer Box
    2"
  • Minimum Drawer
    Box Width (OD)
    13.5" 12" and 10.5"
  • Minimum Space
    Behind Drawer Box
    Flush: 5"
    Surface: 4"

  • Features

  • ETL Listed to UL962aETL Listed to UL962a
  • ETL Listed to CSA - 22.2ETL Listed to CSA - 22.2
  • Interlocking Safety FeatureInterlocking Safety Feature
  • Electrical ConnectionElectrical Connection
  • AC/USB

  • ETL Listed to UL962ayes
  • ETL Listed to CSA - 22.2no
  • Interlocking Safety FeatureCircuit Breaker
  • Electrical ConnectionNEMA 5-15P
  • ALL USB

  • ETL Listed to UL962ayes
  • ETL Listed to CSA - 22.2yes
  • Interlocking Safety FeatureCircuit Breaker
  • Electrical ConnectionNEMA 5-15P
  • GFCI

  • ETL Listed to UL962ayes
  • ETL Listed to CSA - 22.2no
  • Interlocking Safety FeatureManual Reset Thermostat
  • Electrical ConnectionHardwired

  • Receptacle Specifications

  • Receptacle Types
  • Tamper ResistantTamper Resistant
  • 120 AC Outlets120 AC Outlets
  • USB PortsUSB Ports
  • GFCIGFCI
  • Max CurrentMax Current
  • Tamper Resistantyes
  • 120 AC Outlets2
  • USB Ports2
  • GFCI0
  • Max CurrentAC: 3 amps @ 120 VAC
    USB: 3.6 amps @ 5 VDC
  • Tamper Resistantno
  • 120 AC Outlets0
  • USB Ports4
  • GFCI0
  • Max Current4.2 amps @ 5 VDC
  • Tamper Resistantyes
  • 120 AC Outlets2
  • USB Ports0
  • GFCI2
  • Max Current20 amps

Drawer Bottom Placement Options

DRAWER BOTTOM OPTION 1
(1/4” or 1/2″ Bottom)

Bottom raised 3/8” from bottom edge of drawer box. We use this on all standard boxes receiving side mount or bottom mount drawer glides.

DRAWER BOTTOM OPTION 2
(1/4” or 1/2″ Bottom)

Bottom raised 1/2” from bottom edge of drawer box. We use this on all boxes receiving undermount soft-close drawer glides.
